PAPER CORRUGATED BOARD PRODUCTION LINE 3/5/7/PLY

3plybtn-5
play

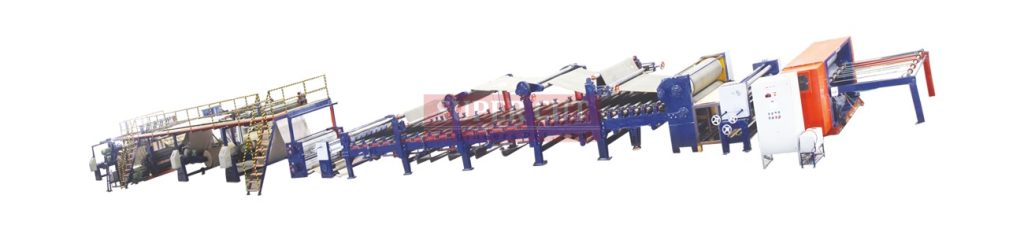

3 PLY PLANT PRODUCTION LINE / LAYOUT
  • Corrugated cardboard production line is the mechanism equipment for producing paper corrugated Cardboard.
  • 3 ply, 5 ply, 7 ply and multi-function corrugated line mainly consist of following equipment Paper mill roll Stand,Pre heater, single facer, conveying bridge, glue application, double facer, thin blade slitter scorer, NC cut off, stacker, heating system and glue making.
  • 3 ply, 5 ply and multi-function corrugated cardboard production line has high medium, and low speed with different-specification and different quality equipment.

We specialise in Customized Requirement depending upon Customers factory Area & Production Output required.

5ply-2
play (1)

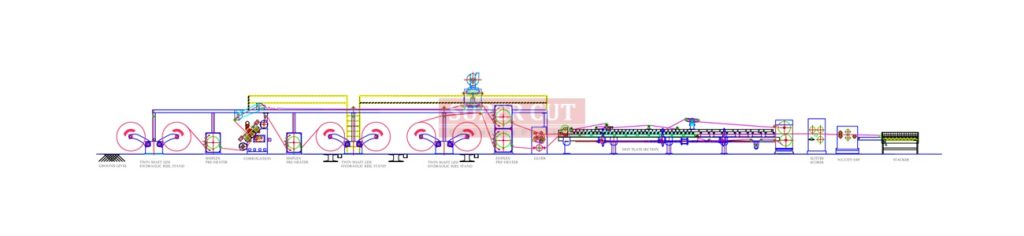

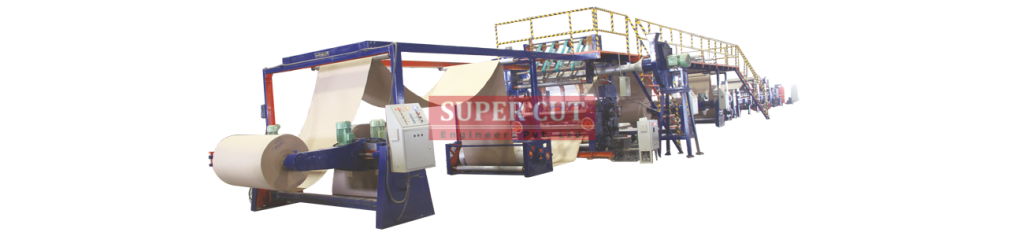

5 PLY PLANT PRODUCTION LINE / LAYOUT
  • Process Workflow:-The paper shall be transmitted from mill stand to single-roller for pre-heating and humidity adjusting, to single facer to further heating, fluting and gluing to be single-corrugated sheet, then to over bridge through pulling for orderly transmitting, to multi-roller pre-heater for again heating, to pasting machine for gluing, to double facer for bottom paper combination to be corrugated sheet, to slitting machine and NC cut off for required sheet and lastly to stacking machine for stacking and outputting.
  • Available width 1400mm-length 2200mm and can be customized.
  • Production speed-60m/min to 220m/min.

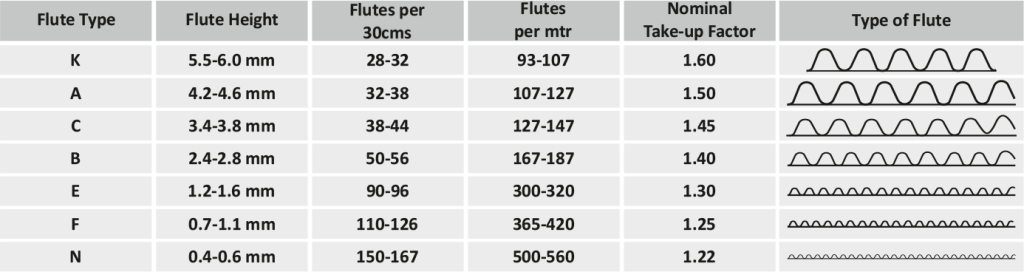

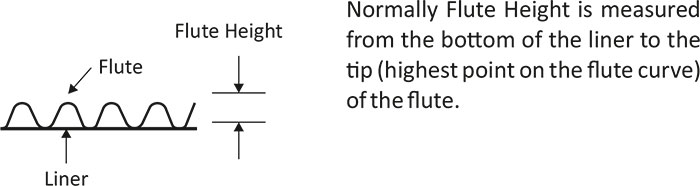

  • Fluting type-A flute, B flute, C flute, E flute.
