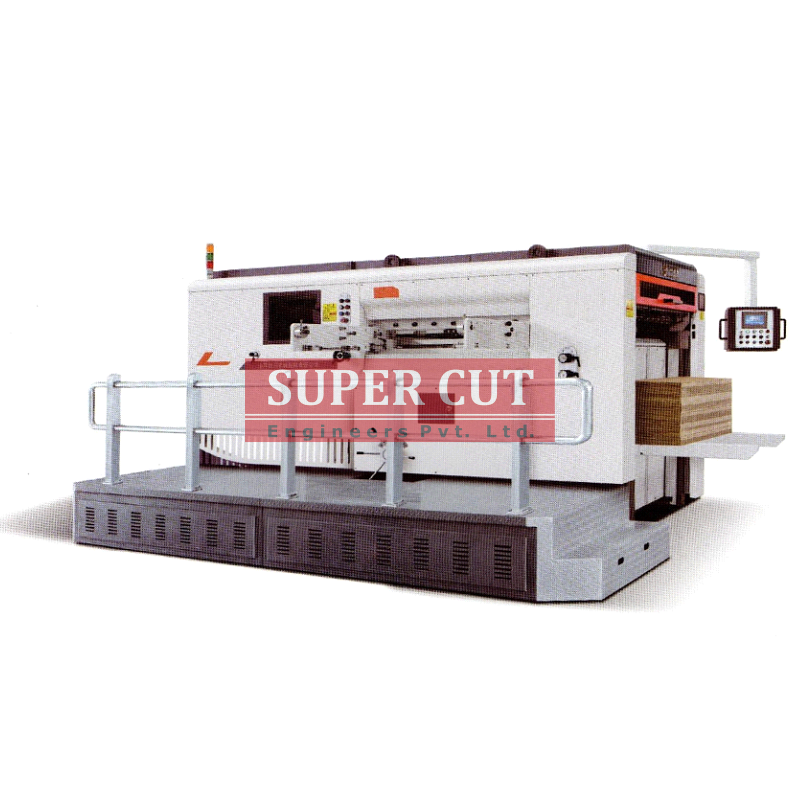

Semi Automatic Flat Bed High Speed Die Cutting Machine – supercut

Description

Semi-Automatic Die cutter in addition with a secondary positioning feed table for greater registration of gripper edge. As an option can be fitted with non-stop feeder and non-stop delivery. It is equipped with second positioning device to achieve second push lay paper because it has high precision with non-gripper edge.

Note:- Due to Continuous Developments, all design are subject to change without prior approval.

Reviews

There are no reviews yet.

Be the first to review “Semi Automatic Flat Bed High Speed Die Cutting Machine”

Technical Specification

Model	SCE 1300	SCE 1450	SCE 1620
Max Paper Size	1330 x 980 mm	1480 x 1080 mm	1650 x 1210 mm
Min Paper Size	550 x 480 mm	550 x 480 mm	650 x 550 mm
Max Cutting Size	1300 x 960 mm	1450 x 1050 mm	1620 x 1190 mm
Max Cutting Pressure	250 x 10⁴ N	300 x 10⁴ N	350 x 10⁴ N
Stock Range	Corrugated Board ≤ 9 mm	Corrugated Board ≤ 9 mm	Corrugated Board ≤ 9 mm
Die Cutting Precision	+/- 0.5 mm	+/- 0.5 mm	+/- 0.5 mm
Max Mechanical Speed	4200 s/h	4000 s/h	3600 s/h
Pressure Adjusting Range	+/- 1 mm	+/- 1 mm	+/- 1 mm
Min Gripper Waste	8 mm	8 mm	8 mm
Inner Chase Size	1330 x 990 mm	1480 x 1080 mm	1646 x 1220 mm
Total Power	18.2 kw	20.5 kw	20.5 kw
Dimension	7830 x 3220 x 2085	8030 x 3505 x 2145	8320 x 3935 x 2345
Gross Weight	~17.3 ton	~18 ton	~22 ton
