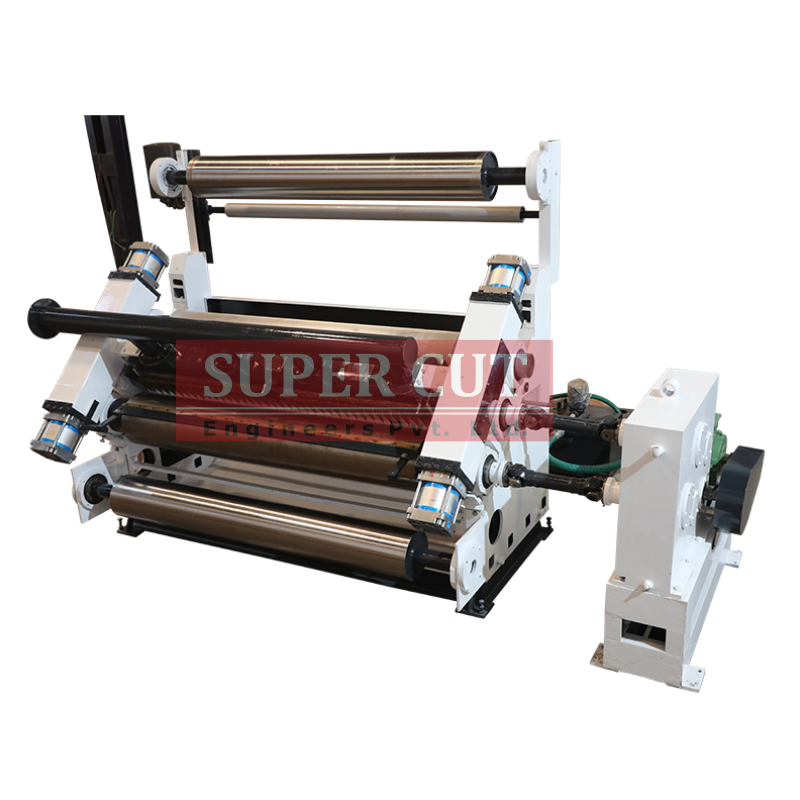

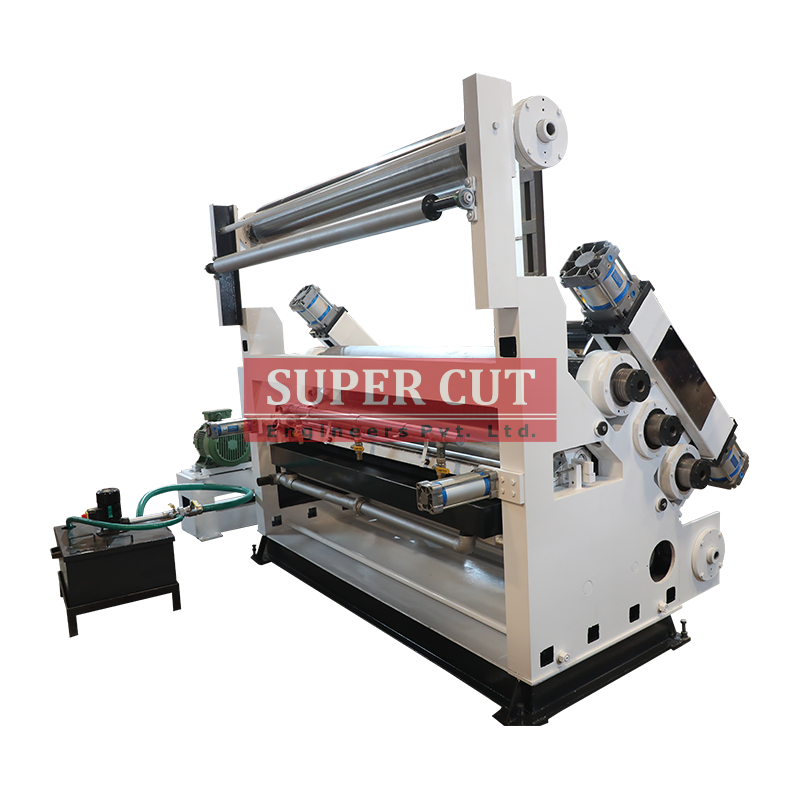

High Speed Single Facer Corrugating Machine – Model No. SCC-220

In Stock

  • Heavy duty robust construction designed for higher production.
  • Alloy Steel Flute Roller Dia 280mm/300mm/320mm as per Customer requirement.
  • Two Preheaters.
  • Ac Variable Speed Drive with Control Panel and Auto Gum Circulating System.
  • All Electricals of International brands/ ISI Mark.
  • Fingerless Model Available.

Note:- Due to Continuous Developments, all design are subject to change without prior approval.

Description

  • Heavy duty robust construction designed for higher production.
  • Alloy Steel Flute Roller Dia 280mm/300mm/320mm as per Customer requirement.
  • Two Preheaters.
  • Ac Variable Speed Drive with Control Panel and Auto Gum Circulating System.
  • All Electricals of International brands/ ISI Mark.
  • Fingerless Model Available.

Note:- Due to Continuous Developments, all design are subject to change without prior approval.

Reviews

There are no reviews yet.

Be the first to review “High Speed Single Facer Corrugating Machine – Model No. SCC-220”

Your email address will not be published. Required fields are marked *

Technical Specification

MACHINE SIZE 42” 52” 62” 72”
MOTOR (HP) 7.5 10 15 20
FINGERLESS SYSTEM – MOTOR (HP) 15 15 15 15
STEAM PRESSURE (KG/CM²) 8.10 8.10 8.10 8.10
PRODUCTION CAPACITY (MTR/MIN) 80-100 80-100 80-100 80-100
WT (APPROX) KGS 5000 6000 6500 7000
FLOOR AREA (LxW) 72”x110” 72”x120” 72”x130” 72”x140”
